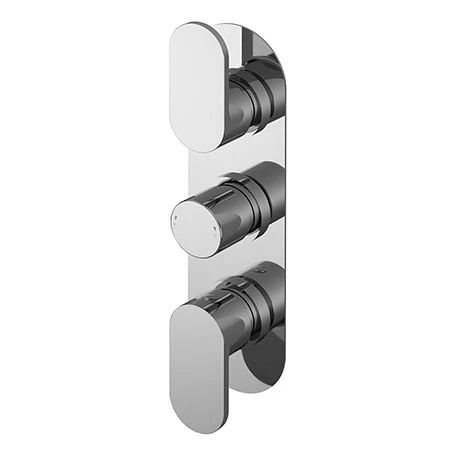

Nuie Binsey Triple Concealed Thermostatic Shower Valve – BINTR02

Nuie Binsey Triple Concealed Thermostatic Shower Valve – BINTR02

For a sleek and contemporary look, the Binsey Triple Concealed Thermostatic Shower Valve is a great option. It features a rounded faceplate and matching round controls and comes beautifully finished in chrome.

This concealed shower valve operates two shower accessories separately or simultaneously – Fixed head / Slide rail kit, Fixed head / Body jets or Slide rail kit / Body jets.

Product Details

• Brand: Nuie
• Product Code: BINTR02
• Height: 280mm
• Width: 80mm
• Depth: 136mm
• Finish: Chrome
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm & 22 mm
• Operating Pressure: 0.1 bar
• For use with 2 Outlets (separately or simultaneously)
• Built-In Diverter
• Approvals: WRAS, TMV2, TMV3

All measurements are approximate

Flow Rates

0.1 Bar – 5.5 l/m
0.2 Bar – 7.1 l/m
0.5 Bar – 14 l/m
1 Bar – 20 l/m
2 Bar – 29 l/m
3 Bar – 44 l/m
