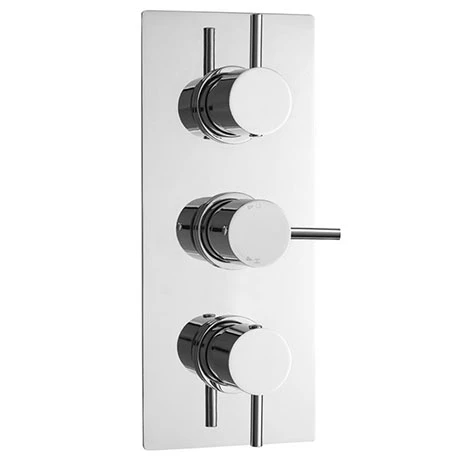

Nuie Quest Concealed Thermostatic Triple Shower Valve With Built-in Diverter

Nuie Quest Concealed Thermostatic Triple Shower Valve with Built-in Diverter

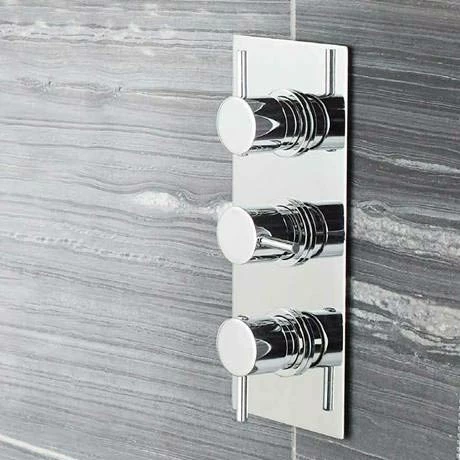

The Quest Concealed Thermostatic Triple Shower Valve with Diverter from Nuie – Quest shower valve provides the ultimate in minimalist design with its contemporary handle design, offers a flexible shower solution with a neat finish and is suitable for use with all water systems. Pipework is concealed for a clean look.

Features easy to operate controls, the top control diverts between two shower accessories, the centre control adjusts the temperature and the bottom control operates a shower accessory.

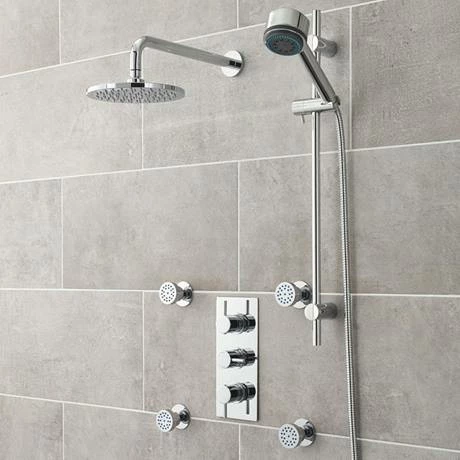

Operates three shower accessories, you can choose to run them separately or run two at the same time.

Product Details

• Height – 280mm
• Width – 120mm
• Brand – Nuie
• Range – Minimalist Round

• Colour/Finish – Polished Chrome
• Material – solid brass
• Water Pressure – MP – 0.5 bar pressure minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing.
• Simply remove the cartridge turn 180 degrees and replace.

Made in Britain

Guarantee – 5 Year

Flow Rates

0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
